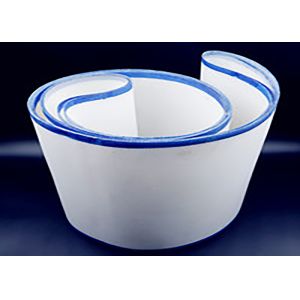

100% Polyester Mesh Belt Polyester Dryer Belt endless conveyor belt
cargo transportation
Product Introduce

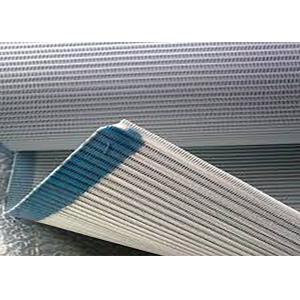

Polyester spiral dryer belt is using the latest international in
the ninety s made of nonwoven technology and equipment production,
is currently the world's one of the most advanced drying, filtering
material. I plant the production of polyester spiral stem network
is made of high quality high viscosity polyester chip processing
wire, after forming, weaving, finishing, finalize the design.
Anti-static Screen Mesh is specially made in spiral weave of
monofilament with filling metal wire to increase anti-static
property. With the conductive metal fiber woven into the mesh belt,
the polyester mesh screen can release the friction electrostatic
occured during high speed operation of machine. Hence, it is called
anti-static wire mesh. The anti-static polyester conveyor belts are
used in drying pulp style paper-making, chemical fiber, continuous
pre-press mesh belt, environmental protection, high density paper
board making, rubber and other anti-static industries.
Product Features
Seamless - the seam has exactly the same strength of the belt
Smooth,seamless filter or conveying surface.
Durability,Stable property, high strength,good cake release.
Heat-resistance,high temperature resistance(180 degree).
Shrink-resistant,wear resistance, acid and alkali-resistant.
High dimensional and diagonal stability,good air ventilation.
Filled or unfilled to achieved differing filtration
characteristics.
Super heat with resin sealed edges for lasting,no
marking,economical solution
Can be repaired easily on site
Product Applications
polyester spiral dryer belt is suitable for high-pressure
pressfilter washer, horizontal belt washer, pulp-liquor separator
and netting belt coal-washer.
polyester spiral dryer belt are extensively used for producing
cardboard,kraft paper,corrugated paper,paper for train fare,single
two-shed press-filter,instead of papermaking machine dry
blanket,canvas,as well as apply to colliery,food and medicine as
conveyor belts.
polyester spiral dryer belt are made with special first quality
yarns in 100%polyester,every spiral link dryer fabric is heat-set
granting a high degree of stability and long running life.
Material advantages
Advantages of our spiral belts are focusing on: strength, flat
surface, good air permeability, stable property against heat and
moisture, low thermal shrinking, less elongation at heat and a long
lifespan.
Product Specification
| Loop Weave Model | Wire / Thread Diameter (mm) | Thickness(mm) | Weight(kg/m2) | Air Permeability
(m3/m2h) |
| Warp | Weft |
| Large Loop 4070B | 0.9 | 1.1 | 3 | 1.7 | 20500+-1500 |
| Large Loop 4070A | 0.9 | 1.1 | 3 | 1.9 | 5250+-500 |
| Medium Loop 3868B | 0.7 | 0.9 | 2.5 | 1.4 | 18500+-1500 |
| Medium Loop 3868A | 0.7 | 0.9 | 2.5 | 1.7 | 4750+-500 |
| Small Loop 3252B | 0.5 | 0.7 | 1.9 | 1.1 | 15000+-1500 |
| Small Loop 3252A | 0.5 | 0.7 | 1.9 | 1.4 | 4000+-500 |
