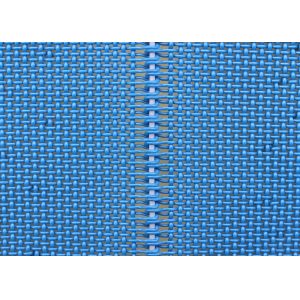

Blue Square Hole 100% Polyester Mesh Belt Polyester Dryer Belt For
Paper Mill
Product Introduce
Spiral monofilament mesh is a kind of synthetic filter cloth fiber
belt widely used in dewatering elements. It works well as cloth for
membrane plates, cloth with sealed edges and/or reinforcements and
under screen cloth for drainage filter press. The special spiral
wire mesh is characterised by high reliability, easy handling,
thermal and chemical resistance, dimensional stability, high
dry-film lubricant content, extremely smooth surface, low friction
coefficient and a low level of adhesion. Typical applications can
be found in ecological wastewater treatment and the fiber board
industry. We supply Polyester Mesh Monofilament Conveyor Belting in
a wide variety of yarn thicknesses and apertures.
Anti-static Screen Mesh is specially made in spiral weave of
monofilament with filling metal wire to increase anti-static
property. With the conductive metal fiber woven into the mesh belt,
the polyester mesh screen can release the friction electrostatic
occured during high speed operation of machine. Hence, it is called
anti-static wire mesh. The anti-static polyester conveyor belts are
used in drying pulp style paper-making, chemical fiber, continuous
pre-press mesh belt, environmental protection, high density paper
board making, rubber and other anti-static industries.
Product Features
Hard-wearing
Flat surface
Good air permeability
Stable property against heat and moisture
Low thermal shrinking
Less elongation at heat
Long service life
Waterproof
Resistance under 180 degrees
Easy to clean
Unique structure help the solid granule get easily off the belt
after filtration
Tear-resistance, shrink-resistance and abrasion resistance
Safe for food processing applications
High dimensional and diagonal stability,good air ventilation.
Seamless - the seam has exactly the same strength of the belt
Product Applications
Spiral belts are mainly used in filtration or separation
applications for municipal projects for example waste water
treatment, and various sludge belt press liquid filtration
applications. Our products are suitable for most mechanical
dewatering cases of various materials.
polyester spiral dryer belt is suitable for high-pressure
pressfilter washer, horizontal belt washer, pulp-liquor separator
and netting belt coal-washer.
polyester spiral dryer belt are extensively used for producing
cardboard,kraft paper,corrugated paper,paper for train fare,single
two-shed press-filter,instead of papermaking machine dry
blanket,canvas,as well as apply to colliery,food and medicine as
conveyor belts.
polyester spiral dryer belt are made with special first quality
yarns in 100%polyester,every spiral link dryer fabric is heat-set
granting a high degree of stability and long running life.
Material advantages
Advantages of our spiral belts are focusing on: strength, flat
surface, good air permeability, stable property against heat and
moisture, low thermal shrinking, less elongation at heat and a long
lifespan.
Product Specification
| Polyester Spiral Dryer Conveyor Wire Mesh Belt |
|
| Weaving Type | Model | Thread Diameter | Air permeability |
| (mm) | (m3/m2h) |
| Warp | Weft | |
| Large Loop | 4070 | 0.9 | 1.1 | 20000±500 |
| Medium Loop | 3868 | 0.7 | 0.9 | 18500±500 |
| Small Loop | 3252 | 0.52 | 0.7 | 15000±500 |
