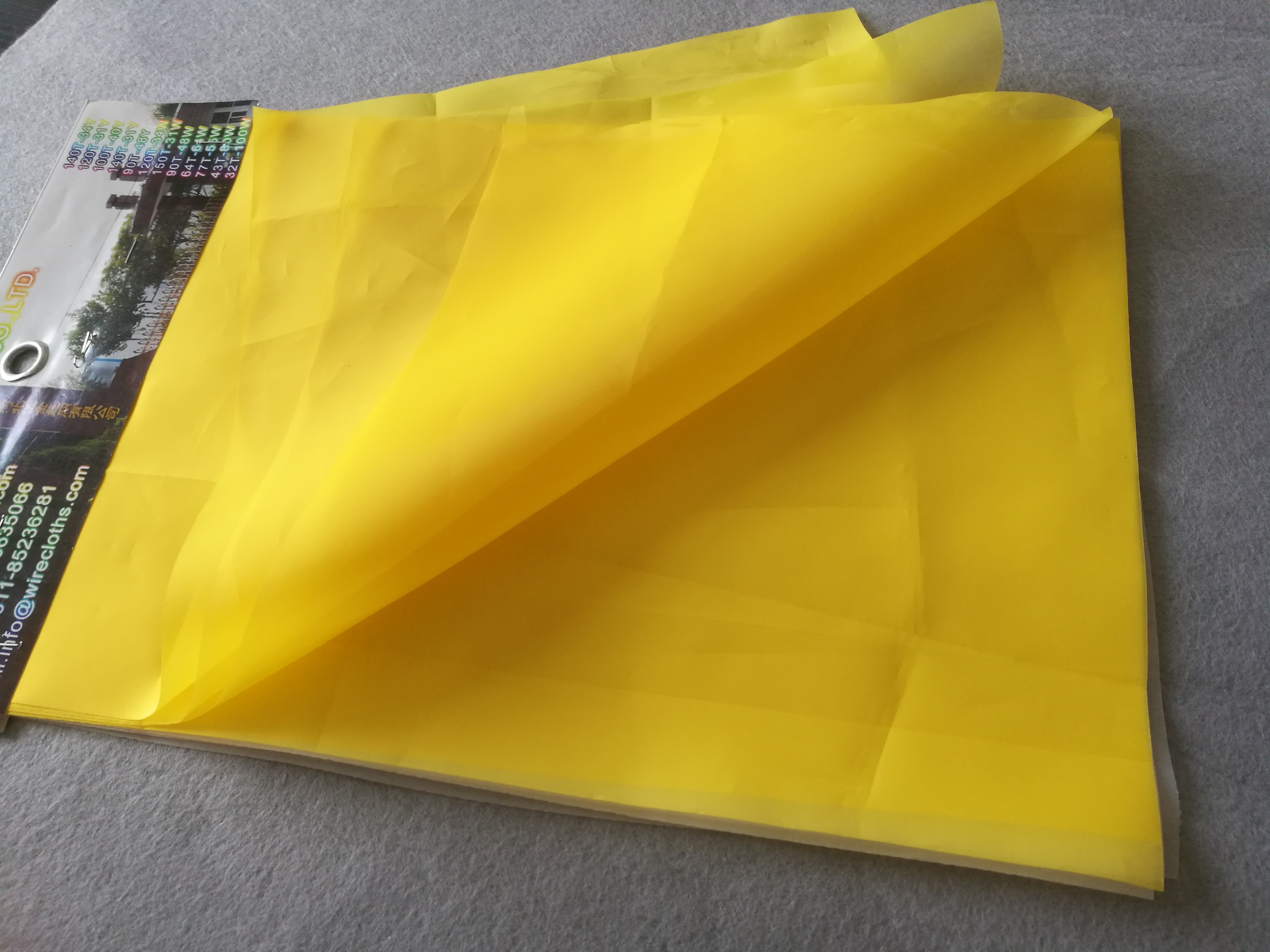

Acid-Resistance Good Colourful Polyester Mesh Screen Printing
Ceramic Printing Wire Mesh
Description of the polyester Monofilament Screen Printing Mesh:
Material: 100% polyester yarn.
Weaving method: plain weave.
Color: white / yellow, other colors can be customized.
Name: polyester mesh, printing mesh, silk screen mesh, nylon mesh,
nylon filter, etc.
Technology: Woven from polyester yarn, it has the characteristics
of precise mesh, flat surface and standard mesh.
Specification: 10 mesh-420 mesh,
Color: white, yellow, etc.
Uses: Widely used in electronic plate making, ceramics, glass,
textile printing and aerospace filtration, and petrochemical
industries.
Low enlongation silk screen printing mesh is producing in our
factory in a wide of rang of the mesh counts,and our silk screen
printing mesh offers significant advantages over the tradinional
mofofilament polyester mesh.
Reking silk screen printing mesh be setting within 180-200
centigrate,we can control our temperature in filexibility. if you
have any problem,you can contact us freely.the satable of the mesh
depends on the temperature when setting up.
|
| Glitter | 25-60 | Flock adhesive | 45-125 |
| Pigment ink printing, areasnes | 110-175 | Puff-up colors | 55-125 |
| Overpritnig | 80-110 | Plasticol transfer | 125-305 |
| Universal fabric | 125 | Plasticol direct | 125-305 |
| Pigment inks,half-tone | 155-255 | Sublimation transfer | 195-305 |
Specification of the polyester Monofilament Screen Printing Mesh::
Mesh Count
Diameter
(Mesh/inch μm) | Mesh
Count
(Mesh
/Inch) | Weave | Aperture
(μm) | Thread
Diameter
(μm) | Opening
(%) | Thickness(μm) | Thickness
Tollerance
(+/- μm) | Theoretical
lnk(cm3/m2) | Weight
(g/m2) |
| 32-55PW(S) | 81 | 1:1 | 257 | 55 | 67 | 103 | 6 | 67 | 28 |
| 32-64PW(S) | 81 | 1:1 | 248 | 64 | 63 | 95 | 6 | 56 | 32 |
| 36-90PW(T) | 92 | 1:1 | 183 | 90 | 44 | 150 | 8 | 65 | 68 |
| 39-55PW(S) | 100 | 1:1 | 177 | 55 | 56 | 88 | 6 | 55 | 30 |
| 40-80PW(T) | 103 | 1:1 | 166 | 80 | 44 | 133 | 7 | 59 | 60 |
| 43-80PW(T) | 110 | 1:1 | 149 | 80 | 41 | 130 | 7 | 53 | 64 |
| 47-45PW(S) | 120 | 1:1 | 166 | 45*2 | 61 | 80 | 6 | 42 | 40 |
| 47-55PW(S) | 120 | 1:1 | 152 | 55 | 51 | 88 | 6 | 48 | 34 |
| 48-70PW(T) | 122 | 1:1 | 133 | 70 | 41 | 115 | 6 | 47 | 55 |
| 53-45PW(S) | 135 | 1:1 | 143 | 45*2 | 57 | 79 | 7 | 41 | 46 |
| 53-55PW(S) | 135 | 1:1 | 133 | 55 | 50 | 86 | 6 | 42 | 40 |
| 54-64PW(T) | 137 | 1:1 | 115 | 64 | 39 | 100 | 5 | 39 | 51 |
| 61-64PW(T) | 155 | 1:1 | 90 | 64 | 31 | 101 | 5 | 30 | 58 |
| 64-55PW(S) | 160 | 1:1 | 98 | 55 | 38 | 98 | 5 | 36 | 48 |
| 64-64PW(T) | 160 | 1:1 | 85 | 64 | 30 | 115 | 6 | 34 | 61 |
| 68-55PW(S) | 175 | 1:1 | 85 | 55 | 34 | 85 | 4 | 28 | 48 |
| 68-64PW(T) | 175 | 1:1 | 78 | 64 | 28 | 105 | 5 | 30 | 65 |
| 72-48PW(S) | 182 | 1:1 | 90 | 48 | 36 | 78 | 5 | 33 | 39 |
Characteristic of the polyester Monofilament Screen Printing Mesh:
Faster tensioning without damage to the threads; Improved fabric
strength; Faster tension stabilization; Higher tension threshold and breaking point; Less tension loss during the stretching
processFaster turnaround time from the screen room to the
pressroom; Improved registration due to stable tension; Faster
Print speeds.
Application of the polyester Monofilament Screen Printing Mesh:
Printing mesh are widely used in T-shirt printing, Graphics
printing, Cosmetic Bottles,Ceramics, Glass,Garment printing,
electronic components
PCB,CD/DVD,Solar battery ect.
