Newman Frame 18-420 Mesh/inch Silk Screen Aluminum Frame For Glass
Printing

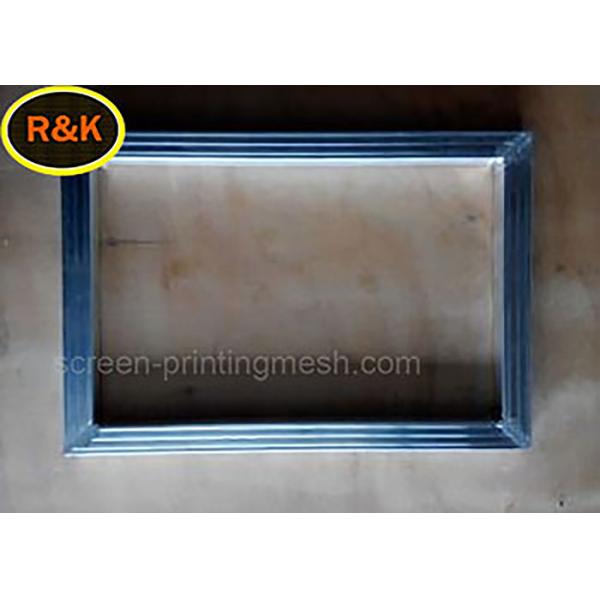

Description of The Silk Screen Aluminum Frame:
The aluminum frame of screen printing equipment is composed of
rectangular tubes with rectangular shape. The rectangular tube is
formed with a diamond reinforced wall. In the middle of the diamond
strengthening wall, there is a longitudinal reinforcing floor.The
structure design of the aluminum frame of screen printing equipment
is reasonable, so that the bending capability of the whole aluminum
frame is significantly improved, and the effect is basically close
to the solid material.
| material | 6063 aluminum alloy |
| standard size | 18''×20'' 20''×24'' 23''×31'' |
| Aluminum profile | 18mm×22mm×1.0/1.4mm 20mm×30mm×1.0/1.6mm 30mm×30mm×1.4mm
38mm×38mm×1.4mm |
| Surface | sandblasting and polishing |
| Brand Name | R&K |
Specification of The Silk Screen Aluminum Frame:
| Rectangle type | Grid type | Heterotype: |
| 18mm×22mm×1.0/1.4mm | 30mm×40mm×1.7/2.0mm | 25mm×25mm×1.0/1.2mm |
| 20mm×30mm×1.0/1.6mm | 35mm×60mm×2.0mm | 30mm×30mm×1.0mm |
| 30mm×30mm×1.4mm | 30mm×40mm×2.5mm | 25mm×40mm×1.0mm |
| 38mm×38mm×1.4mm | 40mm×70mm×2.5mm | 25mm×41mm×1.2/1.4mm |
Features of The Silk Screen Aluminum Frame:
1. Electronic aluminum frame: suitable for single and double side
printed circuit board, decals, glass printing and other printing
precision requirement manufacturer use: printing work mainly
semi-automatic screen printing machine, part of the material is
suitable for the manual printing.
2. Running platform printing aluminum frame: suitable for printing,
clothing printing, craft gifts, leather, plastic, organic glass
products and toy printing, etc.The printing work is mainly for
manual line (running desk) operation.
3. The CD, ceramic aluminum frame: suitable for CD players, signs
nameplate, drops of gum, keyboard, plastics, such as ordinary
printing precision require manufacturers to use: printing
assignment is given priority to with manual printing and printing
machines, small area;Customizable single border and curved frame.
Application For Silk Screen Aluminum Frame:
1. The CD, ceramic aluminum frame: suitable for CD players, signs
nameplate, drops of gum, keyboard, plastics, such as ordinary
printing precision require manufacturers to use: printing
assignment is given priority to with manual printing and printing
machines, small area;Customizable single border and curved frame.
2. Precision electronic aluminum frame: suitable for multilayer
circuit board, LCD display, SMT, membrane switch, ceramic decals,
alcohol, tobacco, packaging and printing requirements of high
precision manufacturers use: printing operations are mainly
composed of automatic silk screen printing machines, also suitable
for precision semi-automatic screen printing machine.
3. Large aluminum frame: suitable for large outdoor four-color
advertisement, light box printing, auto glass, glass curtain wall
and other large printing plant use, printing work mainly with large
screen printing mainly.
