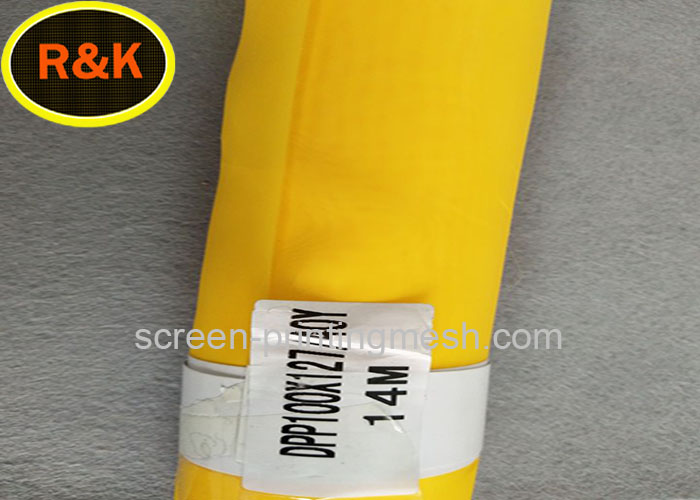

77T Plain Weave Imported Fabric Strength Monofilament Screen
Printing Mesh For PCB Printing
Description For Monofilament Screen Printing Mesh:
Silk screen printing mesh are widely used in
ceramic,glass,electonic components,textile,Garment,CD/DVD Pinting
industry,like the life metal advertisement,business card,and the
imgae..
Low enlongation silk screen printing mesh is producing in our
factory in a wide of rang of the mesh counts,and our silk screen
printing mesh offers significant advantages over the tradinional
mofofilament polyester mesh.
| USAGE | MESH COUNT | USAGE | MESH COUNT |
| Graphics printing mesh |
| Line artwork | 230-305 | Halftone and fine lines | 305-420 |
| Halftones screens up to 70 lines/in | 305-380 | Opaque areas | 255-305 |
| Halftones screens from 70-133lines/in | 380-420 | | |
| Garment printing |
| Glitter | 25-60 | Flock adhesive | 45-125 |
| Pigment ink printing, areasnes | 110-175 | Puff-up colors | 55-125 |
| Overpritnig | 80-110 | Plasticol transfer | 125-305 |
| Universal fabric | 125 | Plasticol direct | 125-305 |
| Pigment inks,half-tone | 155-255 | Sublimation transfer | 195-305 |
| Textile,flat films | | | 300-420 |
| Heavy decor fabric(terry cloth,denim | 110-255 | | |
Specification For Monofilament Screen Printing Mesh:
Mesh Count
Diameter
(Mesh/inch μm) | Mesh
Count
(Mesh
/Inch) | Weave | Aperture
(μm) | Thread
Diameter
(μm) | Opening
(%) | Thickness(μm) | Thickness
Tollerance
(+/- μm) | Theoretical
lnk(cm3/m2) | Weight
(g/m2) |
| 28-140PW(SL) | 70 | 1:1 | 217 | 140 | 40 | 195 | 13 | 76 | 125 |
| 32-55PW(S) | 81 | 1:1 | 257 | 55 | 67 | 103 | 6 | 67 | 28 |
| 32-64PW(S) | 81 | 1:1 | 248 | 64 | 63 | 95 | 6 | 56 | 32 |
| 32-100PW(T) | 81 | 1:1 | 212 | 100 | 45 | 165 | 8 | 73 | 75 |
| 36-90PW(T) | 92 | 1:1 | 183 | 90 | 44 | 150 | 8 | 65 | 68 |
| 39-55PW(S) | 100 | 1:1 | 177 | 55 | 56 | 88 | 6 | 55 | 30 |
| 40-80PW(T) | 103 | 1:1 | 166 | 80 | 44 | 133 | 7 | 59 | 60 |
| 43-80PW(T) | 110 | 1:1 | 149 | 80 | 41 | 130 | 7 | 53 | 64 |
| 47-45PW(S) | 120 | 1:1 | 166 | 45*2 | 61 | 80 | 6 | 42 | 40 |
| 47-55PW(S) | 120 | 1:1 | 152 | 55 | 51 | 88 | 6 | 48 | 34 |
| 48-70PW(T) | 122 | 1:1 | 133 | 70 | 41 | 115 | 6 | 47 | 55 |
| 53-45PW(S) | 135 | 1:1 | 143 | 45*2 | 57 | 79 | 7 | 41 | 46 |
| 53-55PW(S) | 135 | 1:1 | 133 | 55 | 50 | 86 | 6 | 42 | 40 |
| 54-64PW(T) | 137 | 1:1 | 115 | 64 | 39 | 100 | 5 | 39 | 51 |
| 54-70(PW)HD | 137 | 1:1 | 109 | 70 | 35 | 116 | 6 | 40 | 62 |
| 61-64PW(T) | 155 | 1:1 | 90 | 64 | 31 | 101 | 5 | 30 | 58 |
| 64-55PW(S) | 160 | 1:1 | 98 | 55 | 38 | 98 | 5 | 36 | 48 |
| 64-64PW(T) | 160 | 1:1 | 85 | 64 | 30 | 115 | 6 | 34 | 61 |
| 68-55PW(S) | 175 | 1:1 | 85 | 55 | 34 | 85 | 4 | 28 | 48 |
| 68-64PW(T) | 175 | 1:1 | 78 | 64 | 28 | 105 | 5 | 30 | 65 |
| 72-48PW(S) | 182 | 1:1 | 90 | 48 | 36 | 78 | 5 | 33 | 39 |
| 72-55PW(T) | 182 | 1:1 | 85 | 55 | 30 | 90 | 5 | 27 | 51 |
| 77-48PW(S) | 195 | 1:1 | 77 | 48 | 35 | 80 | 4 | 28 | 42 |
Characteristic For Monofilament Screen Printing Mesh:
Low enlongation and high tensile strength;
Fast tensioning without damage to the threads;
Imported fabric strength;
High tension threshold and breaing point;
High durability and best tensility;
Nice appearance,standard size;
Clean and never dipigment;
Weare resistant,corrosion resistant,anti-resistant heat resistant,
Application For Monofilament Screen Printing Mesh:
Widely used in screen printing industry, filtering, textile
printing and dyeing, printing plate, electronic printing, ceramics,
glass printing and other industries.
Silk screen printing mesh can transfer thick ink deposits and great
speical effect to make it to be optimal process to print high
quality commercial farments,T-shirt etc.
Silk screen printing mesh can print the challenging intense color
and ornate decor on glass and PCB etc.
