Multi Purpose Synthetic Screen Printing Mesh Material , Aluminum Mesh Screen Roll

Ask Lasest Price
Brand Name :	R&K
Model Number :	R&K-K
Certification :	FDA SGS
Price :	negotiation
Payment Terms :	L/C,T/T, Paypal ,Western Union, Trade Assurance.
Supply Ability :	5000 Meter/Meters per Day
Delivery Time :	3-8 days

Add to Cart

Product Details
Company Profile

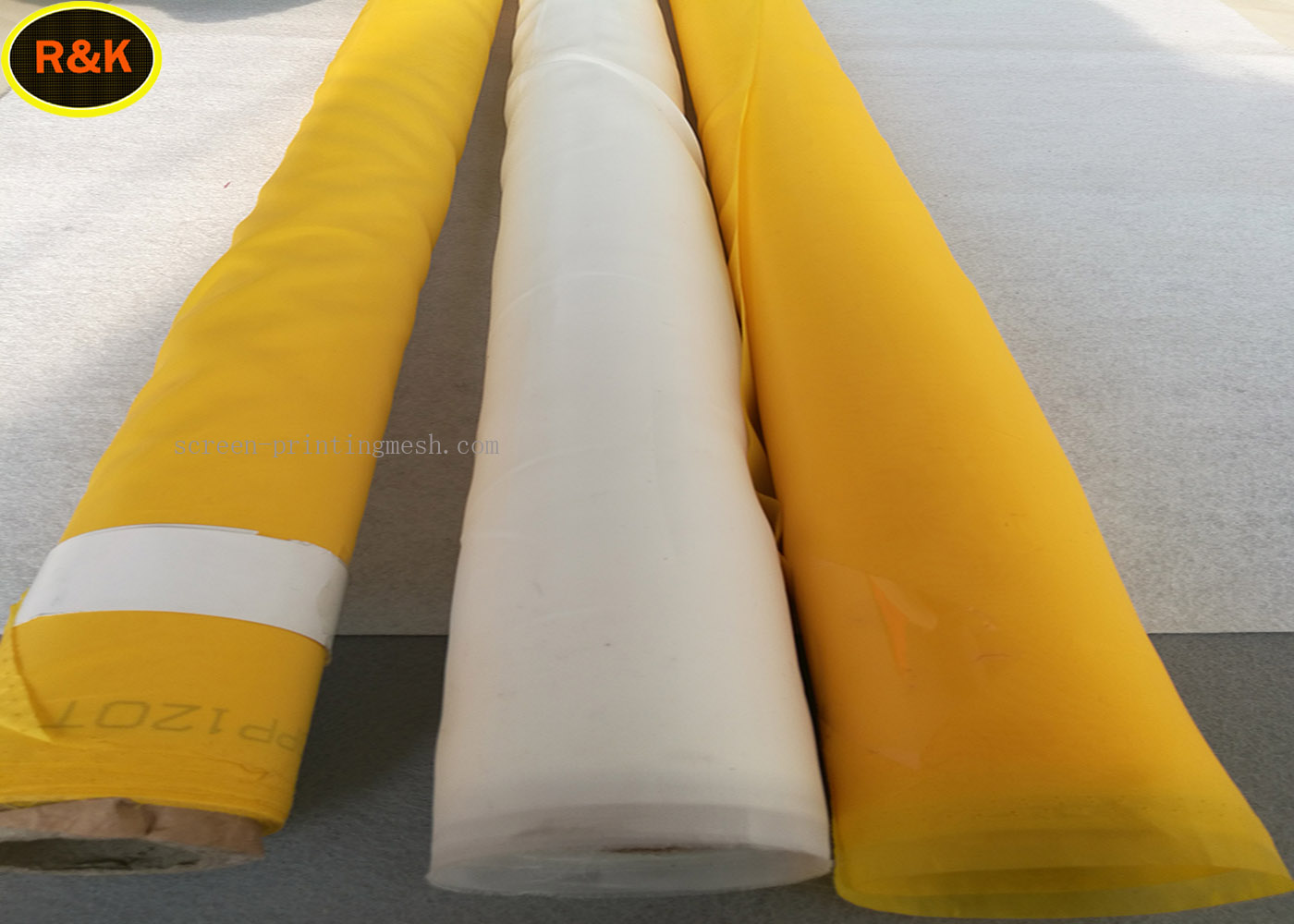

Multi Purpose Synthetic Screen Printing Mesh Material , Aluminum Mesh Screen Roll

Synthetic and Nylon Screen Printing Mesh by the Roll or Metre

Descriptions of synthetic and nylon screen printing mesh by the roll or meter:

Silk screen filter is one of our widely used printing fabrics. It is constructed with woven fabric. It can be used for graphics printing, garment printing, textiles, flat films according to customs' request or different application.

Characteristics of synthestic and nylon screen printing mesh by the roll or meter:

- Faster tensioning without damage to the threads
- Improved fabric strength
- Faster tension stabilization
- Higher tension threshold and breaking point
- Less tension loss during the stretching process
- Faster turnaround time from the screen room to the pressroom
- Improved registration due to stable tension
- Faster Print speeds

Specification
Model	Mesh/cm	Mesh/inch	Aperture (micron)	Thread Dia. (micron)	Open Area (%)	Thickness (micron)	Theoretical Ink (cm3/m2)
10-250	10	25	743	250	55	495	274
12-140	12	30	686	140	68	277	189
13-150	13	33	619	150	64	300	128
16-140	16	40	461	140	58	238	139
21-80	21	55	296	80	69	120	79
21-150	21	55	326	150	46	260	118
22-80	22	56	356	80	66	136	90
24-80	24	60	320	80	63	136	86
24-100	24	60	316	100	57	170	65
28-140	28	70	217	140	40	195	76
32-55	32	80	257	55	67	103	67
32-64	32	80	248	64	63	95	56
32-100	32	80	212	100	46	170	73
36-90	36	92	183	90	44	150	65
39-55	39	100	177	55	56	88	55
43-80	43	110	149	80	41	130	53
47-55	47	120	152	55	51	88	48
48-70	48	122	133	70	41	115	47
53-55	53	135	133	55	50	86	42
54-64	54	137	115	64	39	100	39
54-70	54	137	109	70	35	116	40
61-64	61	155	90	64	31	101	30
64-55	64	160	98	55	38	98	36
64-64	64	160	85	64	30	115	34
68-55	68	175	85	55	34	85	28
68-64	68	175	78	64	28	105	30
72-48	72	182	90	48	36	78	33
72-55	72	182	85	55	30	90	27
80-48	80	200	72	48	33	74	25
90-48	90	230	56	48	25	78	19
100-40	100	255	58	40	33	63	21
110-40	110	280	48	40	27	64	17
120-31	120	305	49	31	35	49	17
120-34	120	305	45	34	30	55	16
130-34	130	330	40	34	27	55	15
140-31	140	355	36	31	26	48	12
140-34	140	355	31	34	20	53	10
150-31	150	380	32	31	23	49	11
150-34	150	380	23	34	13	55	6.5
165-31	165	420	23	31	15	48	7
Note:The above theoretic data is for reference only,and thickness tollerance

Advantages :
1. 126 sets P7100 and P7150 Sulzer weaving looms from Switzerland, as well as Germany-made intellectual electronic warping machine can ensure our supply ability to be 5000 meters per day.
2. For normal mesh count mesh and other products, usually we have stocks, goods can be shiped out within 15 days.
3. Our production process fully based on the high computer technology, it is accepted as the only company capable of having TSE ( Chinese Standard Institution ) and ISO 9001:2008. 90% of our silk screen printing mesh exported to Southeast Asia, North America, Europe and other parts in the world. We have good reputation in the world with high quality and competitive price.

Applications:

It is used in cermacis,T-shirt, porcelain printing, textile printing.glass printing.etc.
