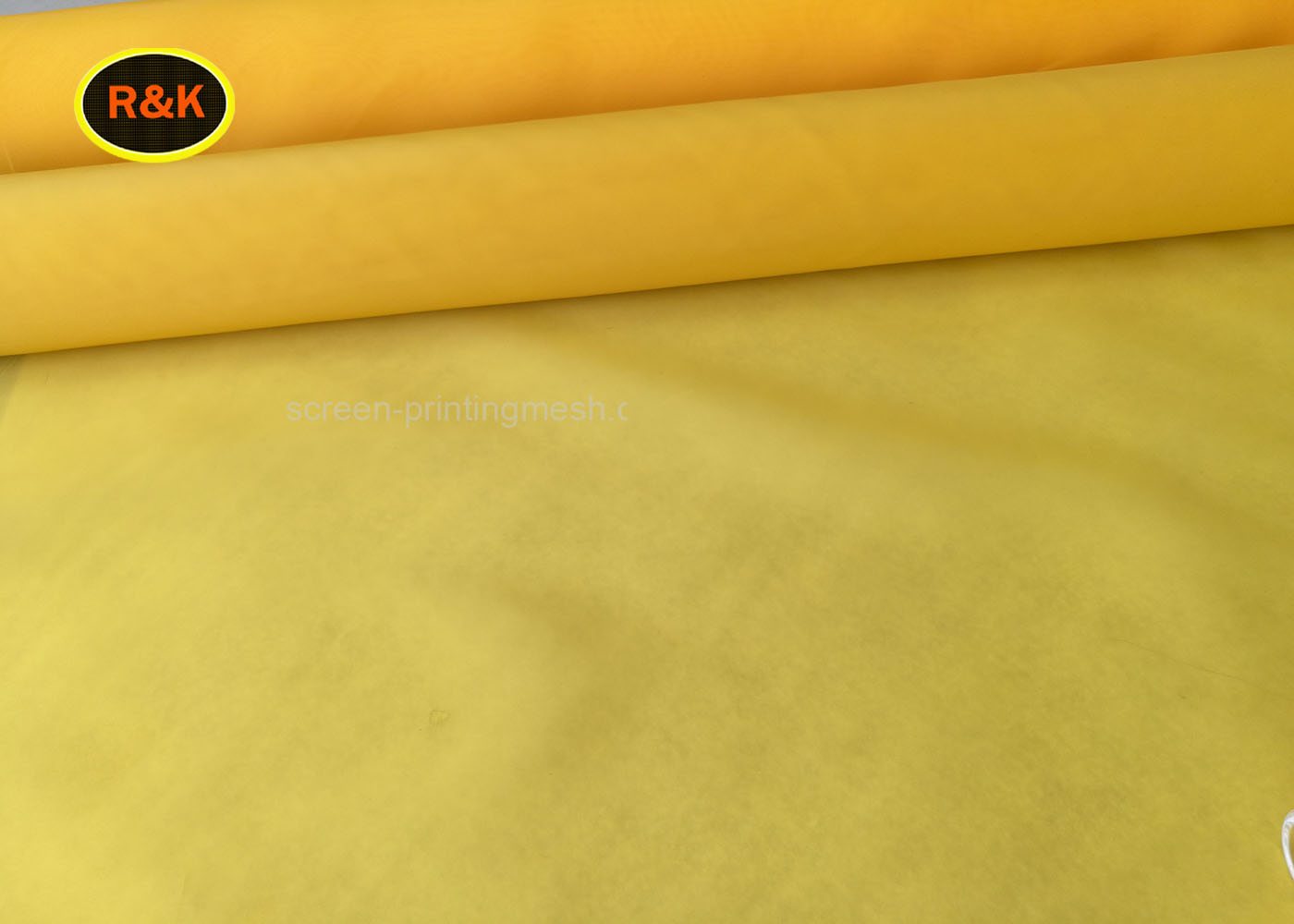

High Tension DPP 40-420 mesh Screen Printing Mesh Roll For
Electronic Components Printing
Introduct for the Screen Printing Mesh Roll :
We are the manufacturer for this polyester mesh with more than 25
years, we use the NANTONG yarn to weave it, we have more than about
100sets machine to make. this mesh is widely used in CD/DVD
Printing,ceramic decorative printing,textile printing,glass ,metal
and so on.
Polyester Screen Printing Mesh with imported high quality
material,advanced wire mesh instruments and technicians well
trained by Swiss experts,we supply you first class polyester and
nylon screen mesh product
| Material | 100% polyester |
| Mesh count | 40-420mesh |
| Thickness | 0.056mm-0.3mm |
| Color | white,yellow, |
Specification for the Screen Printing Mesh Roll:
Mesh Count
Diameter
(Mesh/inch μm) | Mesh
Count
(Mesh
/Inch) | Weave | Aperture
(μm) | Thread
Diameter
(μm) | Opening
(%) | Thickness(μm) | Thickness
Tollerance
(+/- μm) | Theoretical
lnk(cm3/m2) | Weight
(g/m2) |
| 13-150PW(SL) | 33 | 1:1 | 619 | 150 | 64 | 300 | 14 | 128 | 60 |
| 21-80pw(S) | 55 | 1:1 | 296 | 80 | 69 | 120 | 9 | 79 | 35 |
| 21-150PW(SL) | 55 | 1:1 | 326 | 150 | 46 | 260 | 14 | 118 | 121 |
| 24-100PW(T) | 60 | 1:1 | 316 | 100 | 57 | 136 | 11 | 65 | 81 |
| 28-140PW(SL) | 70 | 1:1 | 217 | 140 | 40 | 195 | 13 | 76 | 125 |
| 32-55PW(S) | 81 | 1:1 | 257 | 55 | 67 | 103 | 6 | 67 | 28 |
| 32-64PW(S) | 81 | 1:1 | 248 | 64 | 63 | 95 | 6 | 56 | 32 |
| 32-100PW(T) | 81 | 1:1 | 212 | 100 | 45 | 165 | 8 | 73 | 75 |
| 36-90PW(T) | 92 | 1:1 | 183 | 90 | 44 | 150 | 8 | 65 | 68 |
| 39-55PW(S) | 100 | 1:1 | 177 | 55 | 56 | 88 | 6 | 55 | 30 |
| 40-80PW(T) | 103 | 1:1 | 166 | 80 | 44 | 133 | 7 | 59 | 60 |
| 43-80PW(T) | 110 | 1:1 | 149 | 80 | 41 | 130 | 7 | 53 | 64 |
| 47-45PW(S) | 120 | 1:1 | 166 | 45*2 | 61 | 80 | 6 | 42 | 40 |
| 47-55PW(S) | 120 | 1:1 | 152 | 55 | 51 | 88 | 6 | 48 | 34 |
| 48-70PW(T) | 122 | 1:1 | 133 | 70 | 41 | 115 | 6 | 47 | 55 |
| 53-45PW(S) | 135 | 1:1 | 143 | 45*2 | 57 | 79 | 7 | 41 | 46 |
| 53-55PW(S) | 135 | 1:1 | 133 | 55 | 50 | 86 | 6 | 42 | 40 |
| 54-64PW(T) | 137 | 1:1 | 115 | 64 | 39 | 100 | 5 | 39 | 51 |
| 54-70(PW)HD | 137 | 1:1 | 109 | 70 | 35 | 116 | 6 | 40 | 62 |
| 61-64PW(T) | 155 | 1:1 | 90 | 64 | 31 | 101 | 5 | 30 | 58 |
| 64-55PW(S) | 160 | 1:1 | 98 | 55 | 38 | 98 | 5 | 36 | 48 |
| 64-64PW(T) | 160 | 1:1 | 85 | 64 | 30 | 115 | 6 | 34 | 61 |
| 68-55PW(S) | 175 | 1:1 | 85 | 55 | 34 | 85 | 4 | 28 | 48 |
| 68-64PW(T) | 175 | 1:1 | 78 | 64 | 28 | 105 | 5 | 30 | 65 |
| 72-48PW(S) | 182 | 1:1 | 90 | 48 | 36 | 78 | 5 | 33 | 39 |
| 72-55PW(T) | 182 | 1:1 | 85 | 55 | 30 | 90 | 5 | 27 | 51 |
| 77-48PW(S) | 195 | 1:1 | 77 | 48 | 35 | 80 | 4 | 28 | 42 |
| 77-55PW(T) | 195 | 1:1 | 67 | 55 | 27 | 88 | 4 | 24 | 55 |
| 80-48PW(T) | 200 | 1:1 | 72 | 48 | 33 | 74 | 4 | 25 | 56 |
Features for the Screen Printing Mesh Roll:
Low-enlongation;
High tenson threshold and braking point;
Faster tension stabilization;
Improved fabric strength;
Improved registration due to stable tension;
Loss tension loss during the strentching process;
No surface treatment,
Heat and moisture;
Abrasion;
Fast printing speeds.
Application for the Screen Printing Mesh Roll:
We are the manufacturer for this polyester mesh with more than 25
years, we use the NANTONG yarn to weave it, we have more than about
100sets machine to make. this mesh is widely used in CD/DVD
Printing,ceramic decorative printing,textile printing,glass ,metal
and so on.
