High Flexibility Stainless Steel Screen Printing Mesh / 100 Mesh
Stainless Steel Screen
110mesh stainless steel printing mesh is widely used in super
precision product,like the Printed Circuit
Board,Glass,Creamic,Metal,Rubber,Plastic and so on.
Introduce For The Stainless Steel Printing Mesh:
Reking 100 mesh stainless steel printing mesh have material
304/316/316L,this mesh is widely used in PCB,LCD,Glass ,Chip
electrical components,FPD. the mesh count is 100 mesh per inch,
with 100 micro wire diameter,usually the roll width is
100cm,122cm,153cm,standard size, other wide we can customized for
you.
Material: SUS 304N,304HP,316.
Mesh count: 40mesh/inch-400mesh/inch
Wire diameter: 100 micron
Roll width: 40"(1020mm),48"(1220mm),60"(1530mm),standard size,other wide we
can customized for you.
Roll Length: Staindard size 30meters.
Weave style: Plain weave.1:1
Mesh thickness:please see our specification.
Features For Stainless Steel Printing Mesh:
Low Elongatation;
High tension;
Heat resistant;
High stability;
High flexibility
Non-electrostatic
Abrasion resistant;
Good Solvent resistant;
Chemical & Thremal resistant;
Excellent resistant to abrasion;
Excellent levels of plasticity;
and so on...
Application For Stainless Steel Printing Mesh:
Reking Stainless steel printing mesh are mainly used in touch
screen printing,the solar battery printing,LCD printing,FPD
printing,electronic components printing,thick film printing,creamic
printing industy, glass printing industry,ect...
Packing of the stainless steel printing mesh:
Kraft paper inside and air bubble film outside,and plywood case
outside.
Specification For Stainless Steel Wire Mesh Printing Cloth:
| Mesh/ inch | Wire diameter (µm) | opening (%) | Aperture (µm) | Mesh thickness (µm) | One time calender (µm) | Two time calender (µm) | Suggestion tension (N/CM) | Ink thickness (cm3/㎡) |
| 40 | 160 | 56 | 475 | 300--320 | / | / | / | 179.1 |
| 50 | 140 | 52 | 368 | 265--280 | / | / | / | 146.9 |
| 60 | 120 | 51 | 303 | 230--245 | / | / | / | 123.2 |
| 80 | 120 | 39 | 198 | 235--245 | / | / | / | 92.9 |
| 80 | 90 | 52 | 228 | 175--180 | / | / | / | 93.1 |
| 80 | 50 | 71 | 268 | 95--100 | / | / | / | 71.0 |
| 100 | 100 | 37 | 154 | 195--205 | / | / | / | 77.2 |
| 120 | 80 | 39 | 132 | 155--165 | / | / | / | 65.8 |
| 150 | 60 | 42 | 109 | 115--124 | / | / | / | 50.0 |
| 165 | 45 | 50 | 109 | 88--93 | / | / | / | 45.1 |
| 165 | 50 | 46 | 104 | 97--105 | / | / | / | 45.6 |
| 180 | 45 | 48 | 96 | 88--93 | / | / | / | 41.5 |
| 180 | 50 | 42 | 91 | 96-104 | / | / | / | 41.7 |
| 200 | 40 | 47 | 87 | 82--83 | 66-68 | 62-64 | 49-53 | 37.5 |
| 200 | 50 | 37 | 77 | 98--103 | 86-88 | 84-86 | 49-52 | 36.8 |
| 230 | 35 | 46 | 75 | 81--83 | 56-58 | 55-57 | 47-50 | 28.8 |
| 250 | 40 | 37 | 62 | 69--74 | 66-68 | 65-67 | 47-50 | 23.2 |
| 250 | 30 | 50 | 72 | 63--64 | 49-50 | 45-47 | 45-48 | 29.8 |
| 250 | 35 | 43 | 67 | 77--78 | 58-59 | 54-56 | 45-48 | 31.2 |
| 270 | 35 | 40 | 59 | 71--75 | 60-62 | 57-59 | 42-45 | 30.1 |
| 300 | 30 | 42 | 55 | 67--68 | 51-52 | 47-49 | 40-45 | 28.8 |
| 325 | 30 | 38 | 48 | 62--66 | 50-52 | 49-51 | 40-42 | 28.2 |
| 325 | 28 | 41 | 50 | 63--64 | 49-51 | 45-47 | 40-42 | 26.4 |
| 325 | 23 | 50 | 55 | 49--53 | 38-40 | 35-37 | 39-40 | 25.4 |
| 350 | 25 | 43 | 48 | 46--49 | 42-43 | 39-41 | 38-40 | 18.7 |
| 400 | 18-19 | 51.3 | 46 | 536-40 | 27-28 | 25-27 | 38-40 | 20.0 |
| 400 | 23 | 41 | 41 | 50--54 | 39-40 | 35-37 | 37-40 | 22.0 |

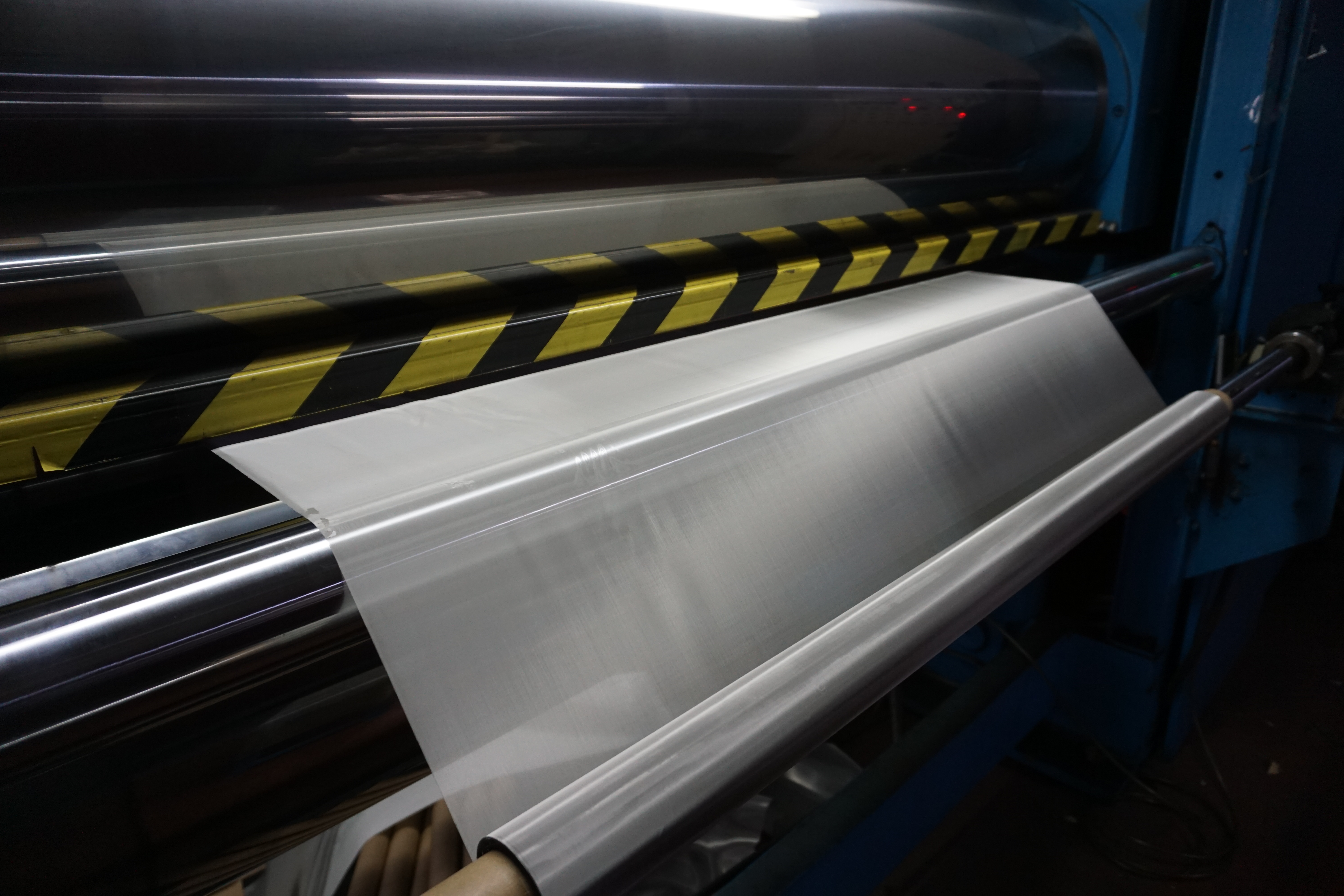

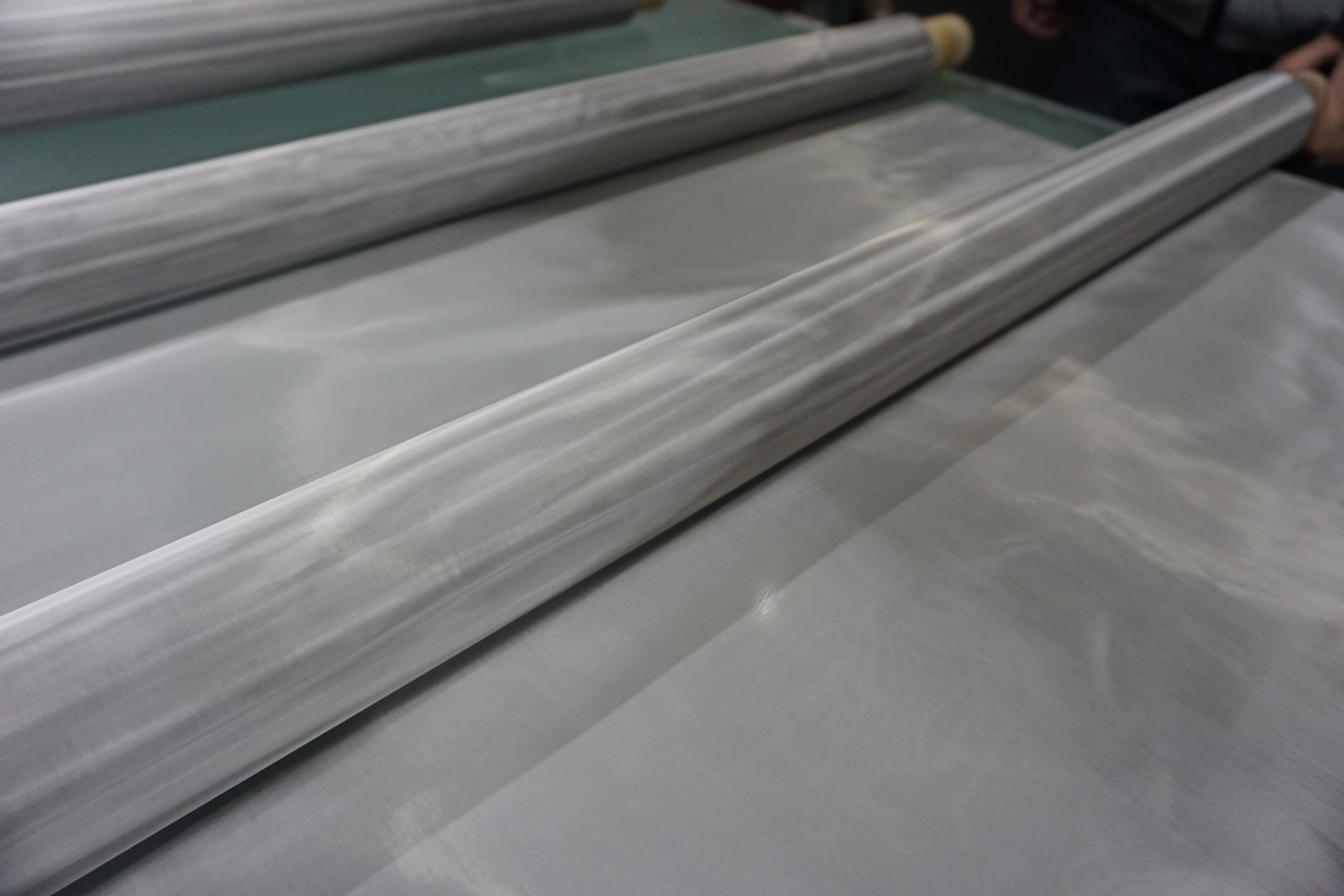

Photos for the Stainless Steel Wire Mesh Printing Cloth:
The warehouse of the stainless steel steel wire mesh printing
cloth:

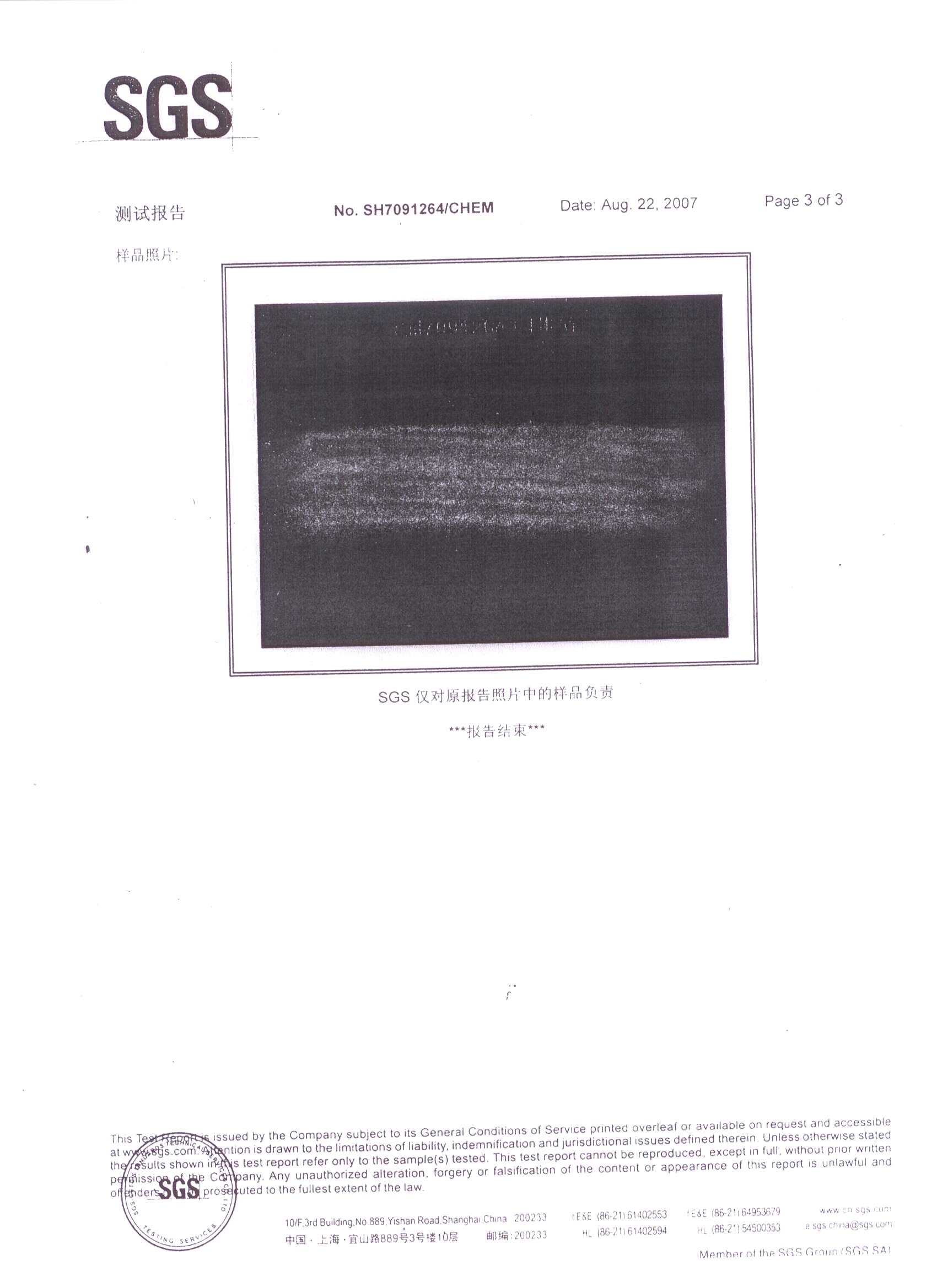

Certification for the Stainless Steel Screen Printing Mesh:
