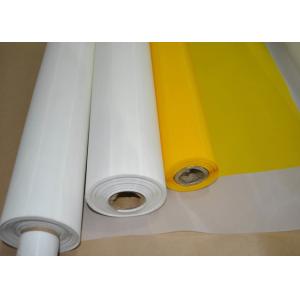

High Tension 200 Micron Nylon Mesh Screen Printing Mesh
Introduce of the nylon screen printing mesh:
The manufacturing process of screen printing wire mesh is to start
with yarn first, then use Heddle yarn, then draw with reed.The
weaving machine begin weaving.Next, clean the wire mesh because it
is soft and we must heat setting treatment.The final process is
product checking.To ensure quality, we must check the finished
product.The final product is finished.
| Material | 100% polyester |
| Mesh count | 40-420mesh |
| Color | White,yellow,red |
| Brand Name | R&K |
| Authentication certificate | ISO,SGS,FDA,MSDS |
Application for the monofilament polyester printing mesh:
Silk Screen Printing Mesh with imported high quality
material,advanced wire mesh instruments and technicians well
trained by Swiss experts,we supply you first class polyester and
nylon screen mesh products.
| Material | 100% polyester |
| Thread diameter | 27micron-100micron |
| Mesh count | 10 mesh-420 mesh and other size as request |
| Thickness | 0.056mm-0.3mm |
| Color | white,yellow,red,orange ect,or as request, MOQ:3000METERS |
| Roll length | 1.05m,1.15m,1.27m,1.65m,1.82m,2.30m,3.30m. |
Specification for the polyester printing mesh:
Mesh Count
Diameter
(Mesh/inch μm) | Mesh
Count
(Mesh
/Inch) | Weave | Aperture
(μm) | Thread
Diameter
(μm) | Opening
(%) | Thickness(μm) | Thickness
Tollerance
(+/- μm) | Theoretical
lnk(cm3/m2) | Weight
(g/m2) |
| 13-150PW(SL) | 33 | 1:1 | 619 | 150 | 64 | 300 | 14 | 128 | 60 |
| 21-80pw(S) | 55 | 1:1 | 296 | 80 | 69 | 120 | 9 | 79 | 35 |
| 21-150PW(SL) | 55 | 1:1 | 326 | 150 | 46 | 260 | 14 | 118 | 121 |
| 24-100PW(T) | 60 | 1:1 | 316 | 100 | 57 | 136 | 11 | 65 | 81 |
| 28-140PW(SL) | 70 | 1:1 | 217 | 140 | 40 | 195 | 13 | 76 | 125 |
| 32-55PW(S) | 81 | 1:1 | 257 | 55 | 67 | 103 | 6 | 67 | 28 |
| 32-64PW(S) | 81 | 1:1 | 248 | 64 | 63 | 95 | 6 | 56 | 32 |
| 32-100PW(T) | 81 | 1:1 | 212 | 100 | 45 | 165 | 8 | 73 | 75 |
| 36-90PW(T) | 92 | 1:1 | 183 | 90 | 44 | 150 | 8 | 65 | 68 |
| 39-55PW(S) | 100 | 1:1 | 177 | 55 | 56 | 88 | 6 | 55 | 30 |
| 40-80PW(T) | 103 | 1:1 | 166 | 80 | 44 | 133 | 7 | 59 | 60 |
| 43-80PW(T) | 110 | 1:1 | 149 | 80 | 41 | 130 | 7 | 53 | 64 |
| 47-45PW(S) | 120 | 1:1 | 166 | 45*2 | 61 | 80 | 6 | 42 | 40 |
| 47-55PW(S) | 120 | 1:1 | 152 | 55 | 51 | 88 | 6 | 48 | 34 |
| 48-70PW(T) | 122 | 1:1 | 133 | 70 | 41 | 115 | 6 | 47 | 55 |
| 53-45PW(S) | 135 | 1:1 | 143 | 45*2 | 57 | 79 | 7 | 41 | 46 |
| 53-55PW(S) | 135 | 1:1 | 133 | 55 | 50 | 86 | 6 | 42 | 40 |
| 54-64PW(T) | 137 | 1:1 | 115 | 64 | 39 | 100 | 5 | 39 | 51 |
| 54-70(PW)HD | 137 | 1:1 | 109 | 70 | 35 | 116 | 6 | 40 | 62 |
| 61-64PW(T) | 155 | 1:1 | 90 | 64 | 31 | 101 | 5 | 30 | 58 |
| 64-55PW(S) | 160 | 1:1 | 98 | 55 | 38 | 98 | 5 | 36 | 48 |
| 64-64PW(T) | 160 | 1:1 | 85 | 64 | 30 | 115 | 6 | 34 | 61 |
| 68-55PW(S) | 175 | 1:1 | 85 | 55 | 34 | 85 | 4 | 28 | 48 |
| 68-64PW(T) | 175 | 1:1 | 78 | 64 | 28 | 105 | 5 | 30 | 65 |
| 72-48PW(S) | 182 | 1:1 | 90 | 48 | 36 | 78 | 5 | 33 | 39 |
| 72-55PW(T) | 182 | 1:1 | 85 | 55 | 30 | 90 | 5 | 27 | 51 |
| 77-48PW(S) | 195 | 1:1 | 77 | 48 | 35 | 80 | 4 | 28 | 42 |
| 77-55PW(T) | 195 | 1:1 | 67 | 55 | 27 | 88 | 4 | 24 | 55 |
Process for this polyester printing mesh:
Yarn→Warping→Drawing In Heddle→Drawing In Reed→Weaving→Insitial
Survey→Washing→
Heat Setting Treatment→Product Inspection→Product.
FAQ of the polyester printing mesh:
A: Are you the manufacturer for this polyester printing mesh?
B: Yes,we are the factory ,with more than 25 years experience,the
factory located in Anping county.
A: What is your payment terms ?
B: T/T,Wester Union,Paypal,
A: Can we visit your factory ?
B: Of caurse,we can pick you up from your hotel or the airport &
train station.
A: How far is your factory from Shanghai?
B: About 1200km.
