White Color Polyester Bolting Cloth , High Tension Screen Printing Mesh Material

Ask Lasest Price
Brand Name :	R&K
Model Number :	J801
Certification :	SGS， ISO 9001
Price :	negotiation
Payment Terms :	L/C,T/T,Paypal, Western Union,Trade Assurance.
Supply Ability :	15000 Meter/Meters per Week Thermal Screen Printing Mesh
Delivery Time :	3-10 days

Add to Cart

Product Details
Company Profile

White Color Polyester Bolting Cloth , High Tension Screen Printing Mesh Material

Thermal Screen Printing Mesh Polyester Bolting Cloth White Color High Tension

Description For Thermal Screen Printing Mesh:

Polyester mesh is the carrier of the directly plate making and printing.Polyester printing mesh are widly used in ceramic print,glass print,textile print,graphic print, it is plain weave mesh,twill weave is not available on the printing industry.

Material	100% monofilament polyester
Mesh count	30 mesh per inch to 460 mesh per inch
Roll width	50/100/300/500/1000/1500meters
Color	white , yellow , red .
Quality	With high quality domestic and imported raw material,advanced weaving looms and test instruments.

Specification For Thermal Screen Printing Mesh:

Mesh Count Diameter (Mesh/cm um)	Mesh Count (Mesh/inch)	Weave	Aperture (um)	Thread Diameter (um)	Opening (%)	Thickness (um)	Thickness Tollerance (+/- um)	Theoretical Ink (cm3/m2)	Weight (g/m2)	Tension value(N/CM)
165-31PW(S)	420	1:1	23	31	15	48	2	7	36	25-26
150-34PW(T)	380	1:1	23	34	13	55	3	6.5	42	30-31
150-31PW(S)	380	1:1	32	31	23	49	3	11	32	24-25
140-34TW(T)	355	2:1	33	34	21	56	3	12	41	27-28
140-34PW(T)	355	1:1	31	34	20	53	3	10	39	26-28
140-31PW(S)	355	1:1	36	31	26	48	2	12	30	22-24
130-34PW(T)	330	1:1	40	34	27	55	3	15	37	27-28
120-40PW(HD)	305	1:1	37	40	20	63	3	13	44	33-35
120-34PW(T)	305	1:1	45	34	30	55	3	16	35	25-26
120-31PW(S)	305	1:1	49	31	35	49	3	17	26	20-23
110-40PW(HD)	280	1:1	48	40	27	64	3	17	40	30-32
100-40PW(T)	255	1:1	58	40	33	63	3	21	37	26-27
90-48PW(T)	230	1:1	56	48	25	78	4	19	50	34-35
80-48PW(T)	200	1:1	72	48	33	74	4	25	56	34-35
77-55PW(T)	195	1:1	67	55	27	88	4	24	55	37-38
77-48PW(S)	195	1:1	77	48	35	80	4	28	42	34-35
72-55PW(T)	182	1:1	85	55	30	90	5	27	51	33-34
72-48PW(S)	182	1:1	90	48	36	78	5	33	39	32-33
68-64PW(T)	175	1:1	78	64	28	105	5	30	65	39-40
68-55PW(S)	175	1:1	85	55	34	85	4	28	48	33-34
64-64PW(T)	160	1:1	85	64	30	115	6	34	61	34-35
64-55PW(S)	160	1:1	98	55	38	98	5	36	48	33-34
61-64PW(T)	155	1:1	90	64	31	101	5	30	58	35-36
54-70PW(HD)	137	1:1	109	70	35	116	6	40	62	39-40
54-64PW(T)	137	1:1	115	64	39	100	5	39	51	33-34
53-55PW(S)	135	1:1	133	55	50	86	6	42	40	26-27
53-45PW(S)	135	2:2	143	45*2	57	79	7	41	46	26-27
48-70PW(T)	122	1:1	133	70	41	115	6	47	55	34-35
47-55PW(S)	120	1:1	152	55	51	88	6	48	34	26-27
43-80PW(T)	110	1:1	149	80	41	130	7	53	64	43-44
40-80PW(T)	103	1:1	166	80	44	133	7	59	60	41-42
39-55PW(S)	100	1:1	177	55	56	88	6	55	30	39-40
36-90PW(T)	92	1:1	183	90	44	150	8	65	68	36-39
32-100PW(T)	81	1:1	212	100	45	165	8	73	75	35-37
32-64PW(S)	81	1:1	248	64	63	95	6	56	32	26-28
32-55PW(S)	81	1:1	257	55	67	103	6	67	28	24-25
28-140PW(SL)	70	1:1	217	140	40	195	13	76	125	/
24-100PW(T)	60	1:1	316	100	57	136	11	65	81	/
21-150PW(SL)	55	1:1	326	150	46	260	14	118	121	/
21-80PW(S)	55	1:1	296	80	69	120	9	79	35	/
13-150PW(SL)	33	1:1	619	150	64	300	14	128	60	/
PW:TW:SL；S,T,HD PW:(Plain Weave);TW:(Twill Weave); S,T,HD:(thickness of Mesh) Standard Color: white and yellow, other colors on request.

Features For Thermal Screen Printing Mesh:

Abrasion;
No surface treatment;
High tension;
Low elongation;
High tension treshold and braking point;
Improved registration due to stable tension;
Fast printing speeds;
Fater tension stabilization;
Improved fabric strength;
Loss ternsion loss during the strengtching process.

Application of the thermal screen printing mesh:

Polyester thermal screen printing mesh is mainly used in ceramic decorative printing industry,Printing on glass, image printing,textile printing,large post printing,medical equipment printing,CD/DVD,PCB ,garment printing,medical equipment printing,membrane switches printing,packing and plastic printing industry.

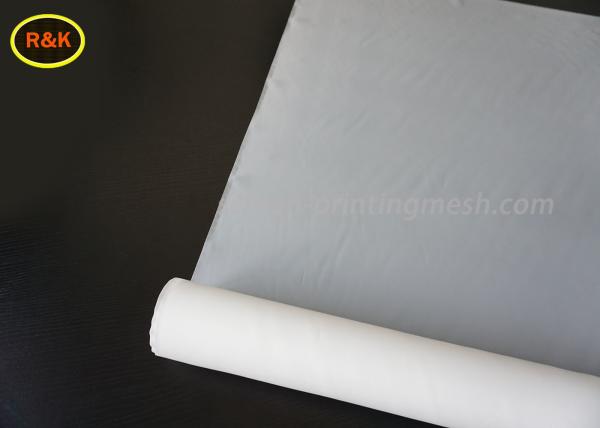

Photo of the thermal screen printing mesh:
