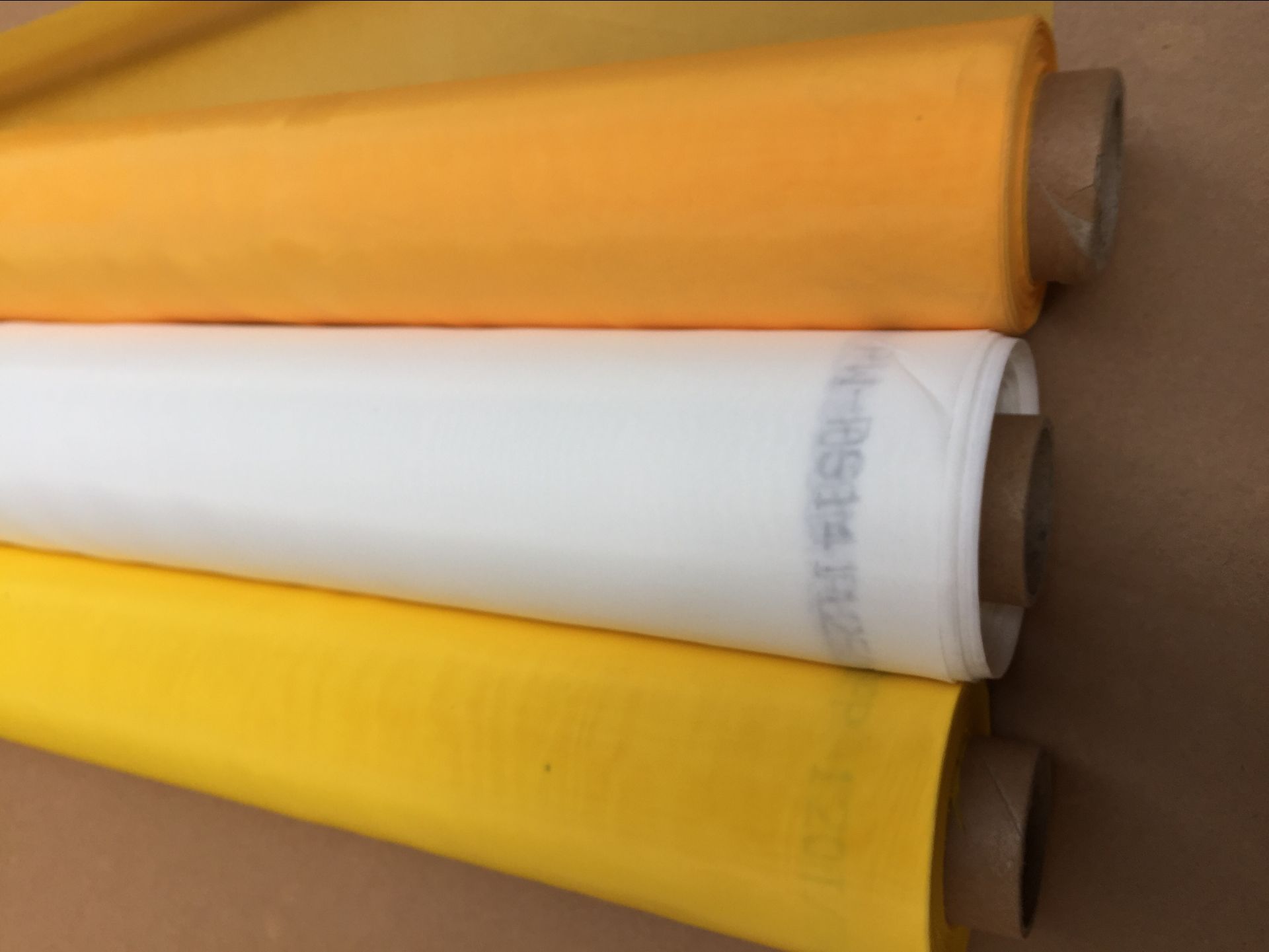

Textile Screen Printing Mesh Polyester Fabric Yellow Color 150
Micron Plain Weave
Polyester mesh is the carrier of the directly plate making and
printing.Polyester printing mesh are widly used in ceramic
print,glass print,textile print,graphic print, it is plain weave
mesh,twill weave is not available on the printing industry.
Description for the Textile Printing Mesh:
Textile Printing Mesh Material:100% monofialment polyester yarn
Textile Printing Mesh Mesh count:47T/120mesh ,55 micron
Textile Printing Mesh Thread dimeter:55 micron
Textile Printing Mesh
Textile Printing Mesh Color:yellow,white,red,orange. other special
size we can accept OEM,MOQ is 5000meters.
Specification for Polyester Screen Printing Mesh:
| Mesh Count Diameter (Mesh/cm um) | Mesh Count (Mesh/inch) | Weave | Aperture (um) | Thread Diameter (um) | Opening (%) | Thickness (um) | Thickness Tollerance (+/- um) | Theoretical Ink (cm3/m2) | Weight (g/m2) | Tension value(N/CM) |
| 165-31PW (S) | 420 | 1:1 | 23 | 31 | 15 | 48 | 2 | 7 | 36 | 25 |
| 150-34PW(T) | 380 | 1:1 | 23 | 34 | 13 | 55 | 3 | 6.5 | 42 | 30 |
| 150-31PW(S) | 380 | 1:1 | 32 | 31 | 23 | 49 | 3 | 11 | 32 | 24 |
| 140-34TW(T) | 355 | 2:1 | 33 | 34 | 21 | 56 | 3 | 12 | 41 | 27-28 |
| 140-34PW(T) | 355 | 1:1 | 31 | 34 | 20 | 53 | 3 | 10 | 39 | 26-28 |
| 140-31PW(S) | 355 | 1:1 | 36 | 31 | 26 | 48 | 2 | 12 | 30 | 22-24 |
| 130-34PW(T) | 330 | 1:1 | 40 | 34 | 27 | 55 | 3 | 15 | 37 | 27-28 |
| 120-40PW(HD) | 305 | 1:1 | 37 | 40 | 20 | 63 | 3 | 13 | 44 | 33-35 |
| 120-34PW (T) | 305 | 1:1 | 45 | 34 | 30 | 55 | 3 | 16 | 35 | 25-26 |
| 120-31PW (S) | 305 | 1:1 | 49 | 31 | 35 | 49 | 3 | 17 | 26 | 20-23 |
| 110-40PW (HD) | 280 | 1:1 | 48 | 40 | 27 | 64 | 3 | 17 | 40 | 30-32 |
| 100-40PW (T) | 255 | 1:1 | 58 | 40 | 33 | 63 | 3 | 21 | 37 | 26-27 |
Features for the Polyester Screen Printing Mesh:
Low-enlongation;
High tenson threshold and braking point;
Faster tension stabilization;
Improved fabric strength;
Improved registration due to stable tension;
Loss tension loss during the strentching process;
No surface treatment,
Heat and moisture;
Abrasion;
Fast printing speeds.
Application for the Polyester Screen Printing Mesh:
Polyester screen printing mesh widely used in Glass printing,touch
screen printing,electronic components,packing printing,graphic
printing,membrane switch,plastic,metal ,screen printing plate ect..
The precision object printing we can use the stainless steel screen
printing mesh,here is the link you could check it.
http://mao.ecer.com/test/domaindemo-30425.tmp/sale-10310675-factory-outlet-low-enlongation-stainless-steel-screen-printing-mesh.html
FAQ for the Polyester Screen Printing Mesh:
A: Can you send us some sample for testing?
B: Sure ,Small sample are available for you,if you need more,please
contact me freely.
A: Are you trade company or the manufacturer?
B: We are the manufacturer for this polyester printing mesh,we have
the plant on Anping county.we have more than 25 years
experience,any problem,you could ask for us,maybe we can help you.
A: Can you please take us to visit your factory?
B: Of caurse,we can take you from the hotel if you are in China
living,or we can pick rom you from the air port to dlelivery our
factory.
THANK YOU FOR YOUR PRESENCE,LOOKING FORWARD TO YOUR INQUIRY.
Screen Printing Mesh Roll Workshop:
