16T-100 Mesh110 Screen Printing Mesh Of Polyester Monofilament For
Glitter Print
110 Screen Printing Mesh Description :
| Material | 100% monofilament polyester |
| Product name | 16T-100 Mesh110 Screen Printing Mesh Of Polyester Monofilament For
Glitter Print |
| Roll width | Max width 3.05meter |
| Mesh count | 195 mesh/inch (77T/ cm) |
| Weave style | Plain weave |
| Color | white,yellow,red,other color we can customized for you. |
Roll width: 41" , 45'' ,50'' , 53'' , 57'', 65'' , 74'', and so
one,the max width we can do 3.69meter.
Roll length:50m/80m/100m/200m/300m/500m/1000m
Material:100% monofilament polyester
Product name:16T-100 Mesh110 Screen Printing Mesh Of Polyester
Monofilament For Glitter Print
Roll width:Max width 3.05meter
Mesh count:195 mesh/inch (77T/ cm)
Weave style:Plain weave
Color:white,yellow,red,other color we can customized for you
110 Screen Printing Mesh Specification
Mesh Count
Diameter
(Mesh/inch μm) | Mesh
Count
(Mesh
/Inch) | Weave | Aperture
(μm) | Thread
Diameter
(μm) | Opening
(%) | Thickness(μm) | Thickness
Tollerance
(+/- μm) | Theoretical
lnk(cm3/m2) | Weight
(g/m2) |
| 13-150PW(SL) | 33 | 1:1 | 619 | 150 | 64 | 300 | 14 | 128 | 60 |
| 21-80pw(S) | 55 | 1:1 | 296 | 80 | 69 | 120 | 9 | 79 | 35 |
| 21-150PW(SL) | 55 | 1:1 | 326 | 150 | 46 | 260 | 14 | 118 | 121 |
| 24-100PW(T) | 60 | 1:1 | 316 | 100 | 57 | 136 | 11 | 65 | 81 |
| 28-140PW(SL) | 70 | 1:1 | 217 | 140 | 40 | 195 | 13 | 76 | 125 |
| 32-55PW(S) | 81 | 1:1 | 257 | 55 | 67 | 103 | 6 | 67 | 28 |
| 32-64PW(S) | 81 | 1:1 | 248 | 64 | 63 | 95 | 6 | 56 | 32 |
| 32-100PW(T) | 81 | 1:1 | 212 | 100 | 45 | 165 | 8 | 73 | 75 |
| 36-90PW(T) | 92 | 1:1 | 183 | 90 | 44 | 150 | 8 | 65 | 68 |
| 39-55PW(S) | 100 | 1:1 | 177 | 55 | 56 | 88 | 6 | 55 | 30 |
| 40-80PW(T) | 103 | 1:1 | 166 | 80 | 44 | 133 | 7 | 59 | 60 |
| 43-80PW(T) | 110 | 1:1 | 149 | 80 | 41 | 130 | 7 | 53 | 64 |
| 47-45PW(S) | 120 | 1:1 | 166 | 45*2 | 61 | 80 | 6 | 42 | 40 |
| 47-55PW(S) | 120 | 1:1 | 152 | 55 | 51 | 88 | 6 | 48 | 34 |
| 48-70PW(T) | 122 | 1:1 | 133 | 70 | 41 | 115 | 6 | 47 | 55 |
| 53-45PW(S) | 135 | 1:1 | 143 | 45*2 | 57 | 79 | 7 | 41 | 46 |
| 53-55PW(S) | 135 | 1:1 | 133 | 55 | 50 | 86 | 6 | 42 | 40 |
| 54-64PW(T) | 137 | 1:1 | 115 | 64 | 39 | 100 | 5 | 39 | 51 |
| 54-70(PW)HD | 137 | 1:1 | 109 | 70 | 35 | 116 | 6 | 40 | 62 |
| 61-64PW(T) | 155 | 1:1 | 90 | 64 | 31 | 101 | 5 | 30 | 58 |
| 64-55PW(S) | 160 | 1:1 | 98 | 55 | 38 | 98 | 5 | 36 | 48 |
| 64-64PW(T) | 160 | 1:1 | 85 | 64 | 30 | 115 | 6 | 34 | 61 |
| 68-55PW(S) | 175 | 1:1 | 85 | 55 | 34 | 85 | 4 | 28 | 48 |
| 68-64PW(T) | 175 | 1:1 | 78 | 64 | 28 | 105 | 5 | 30 | 65 |
| 72-48PW(S) | 182 | 1:1 | 90 | 48 | 36 | 78 | 5 | 33 | 39 |
| 72-55PW(T) | 182 | 1:1 | 85 | 55 | 30 | 90 | 5 | 27 | 51 |
| 77-48PW(S) | 195 | 1:1 | 77 | 48 | 35 | 80 | 4 | 28 | 42 |
110 Screen Printing Mesh Features:
1. Faster turnaround time from the screen room to the pressroom;
2. Good diathermancy;
3. High air permeability;
4. Acid resistance and Alkali resistance;
5. Long working life;
6. Hard wear;
7. Three factories for manufacturing;
8. Imported weaving machines from Switzerland and Italy;
9. Low enlongation;
10. Acid resistant;
11. Improved fabric strength;
12. Fast printing speed;
13. Fast tension stabilization;
14. Less tension loss during the stretching process;
15. Improved registration due to stable tension.
110 Screen Printing Mesh Applications:
Polyester screen printing mesh are widely used in textile and
garment printing, glass printing,ceramic printing, electronic
components printing,PCB printing,solar battery printing.Like the
life printing,metal sheet print the company name.

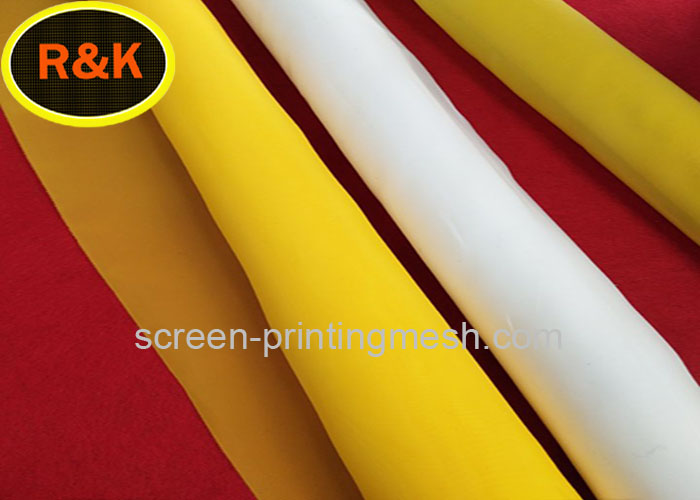

110 Screen Printing Mesh Photo:
