    304N Stainless Steel Screen Printing Mesh / Polyester Monofilament Mesh

    Ask Lasest Price
    Brand Name : R&K
    Model Number : Y1712
    Certification : ISO9001:2008,SGS
    Price : negotiation
    Payment Terms : L/C, T/T, Western Union,Paypal,Crdit Card.Trade asscurance
    Supply Ability : 100rolls per months
    Delivery Time : depends on your qty.ususally within 15days.
    • Product Details
    • Company Profile

    304N Stainless Steel Screen Printing Mesh / Polyester Monofilament Mesh

    304N 400mesh Plain Weave Stainless Steel High Tension Wire Mesh For Solar Printing


    SS printing mesh is widely used in curver surface subject,like the Printed Circuit Board,Glass,Creamic,Metal,Rubber,Plastic and so on.it is very suitable for use harsh environments,multicolor overprint,Batch printing ect..


    Application for High Tension Wire Mesh:


    For ceramic printing industry;

    For glass printing industry;

    For touch screen printing;

    For PCB(Printed Circuit Board);

    For solar battery printing;

    For LCD printing;

    For FPD printing;

    For electronic components printing;

    For thick film printing;

    ......


    Introduce For The High Tension Wire Mesh:


    MaterialSUS 304N,304HP,316
    Mesh count80mesh/inch-500mesh/inch
    Wire diameter18micron-160 micron
    Standard width40"(1020mm),48"(1220mm),60"(1530mm),standard size,other wide we can customized for you.
    Standard length30 meters
    Weave styleplain weave . 1:1
    Mesh thicknessPlease refer to our specification

    Features for High Tension Wire Mesh:


    Low Elongatation;High tension;

    Heat resistant;High stability;

    High flexibilityNon-electrostatic

    Abrasion resistant;Good Solvent resistant;

    Chemical & Thremal resistant;Excellent resistant to abrasion;

    Excellent levels of plasticity;and so on...


    Specification for High Tension Wire Mesh:


    Mesh/ inch

    Wire diameter

    (µm)

    opening (%)Aperture (µm)

    Mesh thickness

    (µm)

    One time calender

    (µm)

    Two

    time calender

    (µm)

    Suggestion tension (N/CM)

    Ink thickness

    (cm3/㎡)

    4016056475300--320///179.1
    5014052368265--280///146.9
    6012051303230--245///123.2
    8012039198235--245///92.9
    809052228175--180///93.1
    80507126895--100///71.0
    10010037154195--205///77.2
    1208039132155--165///65.8
    1506042109115--124///50.0
    165455010988--93///45.1
    165504610497--105///45.6
    18045489688--93///41.5
    18050429196-104///41.7
    20040478782--8366-6862-6449-5337.5
    20050377798--10386-8884-8649-5236.8
    23035467581--8356-5855-5747-5028.8
    25040376269--7466-6865-6747-5023.2
    25030507263--6449-5045-4745-4829.8
    25035436777--7858-5954-5645-4831.2
    27035405971--7560-6257-5942-4530.1
    30030425567--6851-5247-4940-4528.8
    32530384862--6650-5249-5140-4228.2
    32528415063--6449-5145-4740-4226.4
    32523505549--5338-4035-3739-4025.4
    35025434846--4942-4339-4138-4018.7
    40018-1951.346536-4027-2825-2738-4020.0
    40023414150--5439-4035-3737-4022.0

    Photos for the High Tension Wire Mesh:

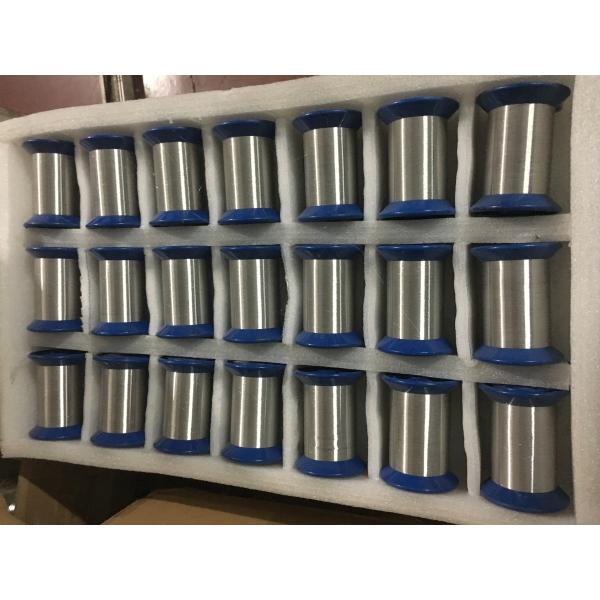

    High quality Stainless steel wire

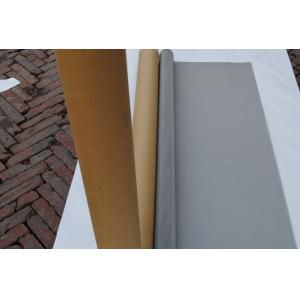

    High Tension Stainless Steel Screen Printing Mesh

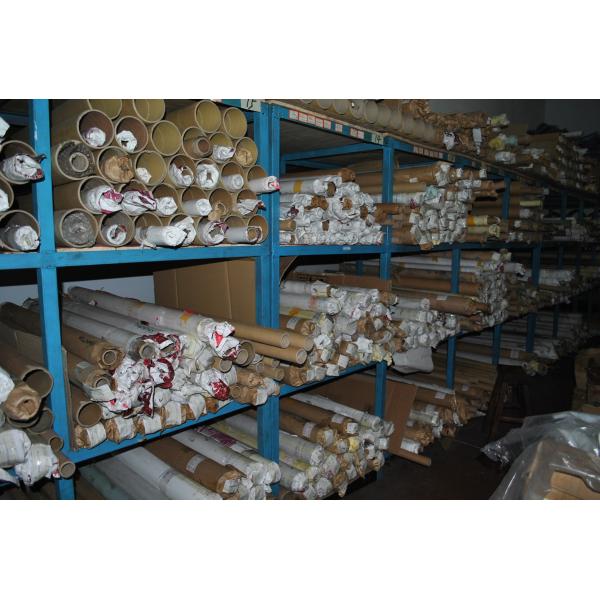

    The Warehouse Of The Stainless Steel Wire Mesh



    FAQ for High Tension Wire Mesh:


    A:How to got your sample?

    B:Please send us your courier account,or pay for us the freight cost,we can send to you directly.


    A:Are you trade or manufacturer?

    B:We are the manufacturer for this stainless steel screen printing mesh,our factory located in Anping county.


    A:How to arrive your plant?

    B:We can pick up you from your hotel,or the airport & train station.


    A:When you can ship out the goods?

    B:If you need more,we can ship out within 15days,if you need small,we can ship out within 5days.


    A:Which payment terms do you have?

    B:T/T,Western Union,Paypal,L/C,Trade asscurance,Credit card.please choose the convenient way for you.


    Certification for the High Tension Wire Mesh:
